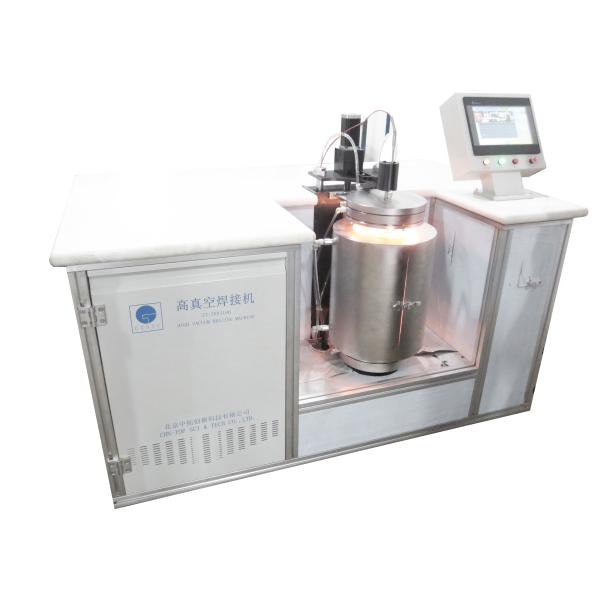

Vacuum brazing machine ZT-ZKHJ 180 for ultra-hard materials PCD&PCBN
Quick Details
1, PLC control, SCR heating, touch panel
2, No oxidation, clean surface, environment-friendly.
3, Brazing quantity is more than 500pcs (for CNGA1204).
4, Fully automatic and once loaded, cycle time: 70-120 min.
5, Reduction of distortion even very small tool insert can be brazed.
6, High brazing strength, 2 times higher than induction welding.
7, Advanced artificial quartz stone for table-board
8. Offer OEM according to clients’ requirement.
Description:
Vacuum Brazing Machine is excellent for brazing ultra-hard materials ( PCD/ PCBN/ MD/ ND/ CVD), tungsten carbide, ceramics and others; it’s fully automatic and very easy to operate at high efficiency.
Specifications:
| Technology Parameters |
| Dimensions | 1600*950*900mm (L*W*H) |
| Power Supply | 120: 380V-3Phases-5Wires/15KW |
| 180: 380V-3Phases-5Wires/20KW |

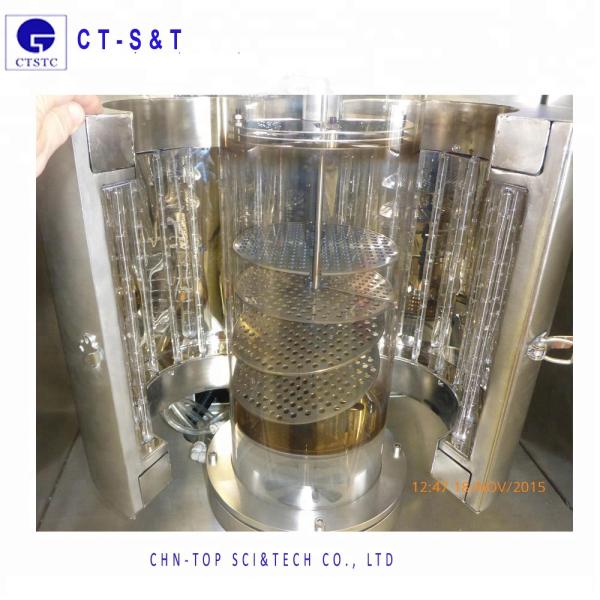

| Chamber | Quartz Glass Tube |
| Rated Power | 20KW |
| Chamber Size | 120: φ120*L500*T4 (mm) |
| 180:φ180*L500*T4 (mm) |
| Brazing Capability | 120: CNGA1204 appr.300pcs/cycle |
| 180: CNGA1204 appr.600pcs/cycle |
| Max Temperature | 950° |
| Max Vacuum Rate | 10-6 Torr (10-4 Pa) |
| Vacuum rate | 10-4 Torr (10-2 Pa) |
| Heating Source | 12 pcs halogen tubes |
| 18 pcs halogen tubes |
| Chilling | Water cooling |
| Vacuum Process | - Cleaning
- Fixing Flux
- Drying :200℃ 30mins
- Brazing
|
Applications:
This machine is mainly suitable for nature diamond, mono-crystal diamond, PCD, PCBN, CVD, cermet, tungsten carbide, steel, stainless steel, steel alloy, ceramic.
